Model

Trail Tracker: 26" Edition

Weight Limit

250 LB

Ideal Use

Adventure

Speed

UP TO 28 MPH*

Range

UP TO 56 MILES

Pedal Assist

5 Levels Cadence Assist _ 5 Levels Torque Assist

Rider Height

5’7”+

Electronics

Motor

BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION

Battery

48 VOLT 14 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION.

Charger

PEDEGO 2 AMP SMART CHARGER WITH A COMPLETELY SEALED CASE AND CHARGE INDICATOR LIGHT.

Controller

48 VOLT 20 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS.

THROTTLE

CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION.

PEDALSENSE®

FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND TORQUE OR CADENCE MODE, THROTTLE ONLY MODE.

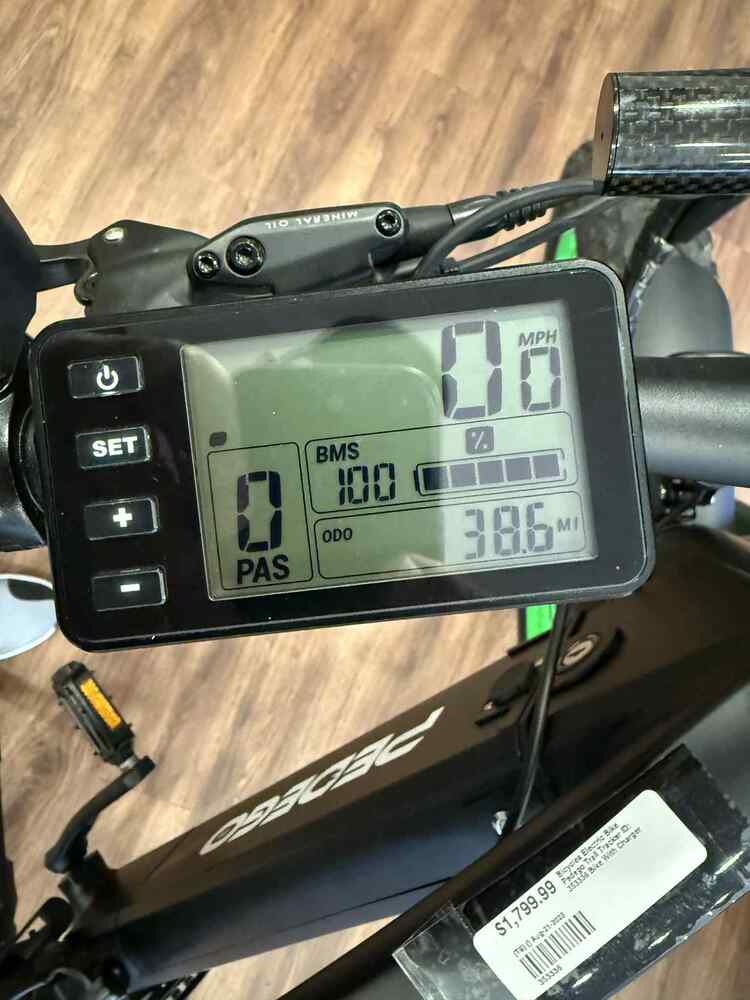

DISPLAY

3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE.

TOP SPEED

CLASS 2: 2O MPH MAX, WITH PEDAL ASSIST AND THROTTLE ASSIST CLASS 3: 28 MPH MAX, WITH PEDAL ASSIST ONLY (SOFTWARE UPGRADE AVAILABLE THROUGH PEDEGO DEALER ONLY)

Drivetrain

DERAILLEUR

SRAM GX 10-SPEED REAR DERAILLEUR; EXACT ACTUATION™ FOR PRECISE AND DEPENDABLE 10-SPEED PERFORMANCE; CAGE LENGTH = SHORT.

CASSETTE

SRAM PG-1030 10-SPEED CASSETTE,11-36T; SMOOTH, POWERGLIDE II™ TECHNOLOGY PROVIDES SUPER-SMOOTH SHIFTING BETWEEN GEARS; DURABLE NICKEL CHROME FINISH.

SHIFTERS

SRAM GX 10-SPEED TRIGGER SHIFTER; SRAM X-GLIDE™ SHIFTING, EXACT ACTUATION™ FOR PRECISE AND DEPENDABLE 10-SPEED PERFORMANCE.

BOTTOM BRACKET

100MM x 167MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; INTEGRATED TORQUE SENSOR.

CHAIN

KMC X10-EPT 10 SPEED; RUSTBUSTER TREATMENT; 132 LINKS.

CRANK

BLACK 3 PIECE CRANK WITH 5x130MM 52T CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS; INTEGRATED DOUBLE CHAINRING GUARD.

PEDALS

BLACK PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS.

Brakes

CALIPERS

STAR UNION 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE; MINERAL OIL BRAKE FLUID.

LEVERS

STAR UNION 3 FINGER LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY.

PADS

LOW NOISE RESIN BRAKE PADS WITH STEEL BACKING PLATE, OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS.

ROTORS

STAINLESS STEEL;180MM DIAMETER; STIFF, DURABLE DESIGN WITH A STRAIGHT, PREDICTABLE BRAKING SURFACE.

Components

FRAME

6061-T6 ALUMINUM ALLOY; 1 ?”-1 ½” TAPERED HEAD TUBE; INTEGRATED DOWNTUBE BATTERY MOUNT; INTERNAL / EXTERNAL CABLE AND WIRE ROUTING.

FORK

26” FAT TIRE RIGID HIGH TENSILE STEEL; 1 ?”-1 ½” TAPERED THREADLESS STEERER TUBE; QUICK RELEASE 15MM x 150MM THRU-AXLE; DISC BRAKE MOUNTS.

FORK (AFTERMARKET)

ROCKSHOX BLUTO RL; 80MM TRAVEL, SOLO AIR SPRING, 51MM FORK OFFSET; MOTION CONTROL DAMPER WITH REBOUND AND COMPRESSION/LOCKOUT ADJUSTMENTS

HEADSET

BLACK ZERO STACK SEMI-INTEGRATED; 1 ?” - 1 ½” THREADLESS TAPERED; ZS44/28.6 _ ZS56/40.

SEATPOST

BLACK 27.2MM x 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD.

SADDLE

MTB STYLE WITH SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L x 144MM W.

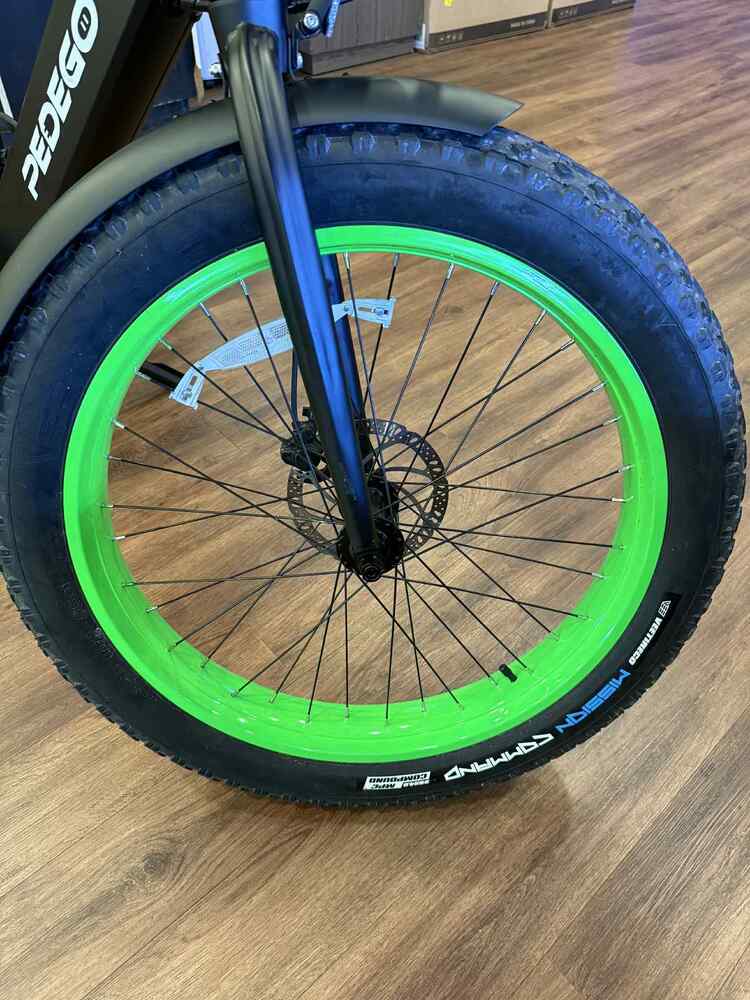

RIMS

26” x 3” FAT TIRE EXTRA STRENGTH DOUBLE WALL; LIGHTWEIGHT ALUMINUM ALLOY; 12G X 36 HOLE.

SPOKES

FRONT: BLACK 13 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES. REAR: BLACK 12 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES.

GRIPS

PEDEGO RUBBER LOCK ON GRIPS; DIAMOND GRIP PATTERN.

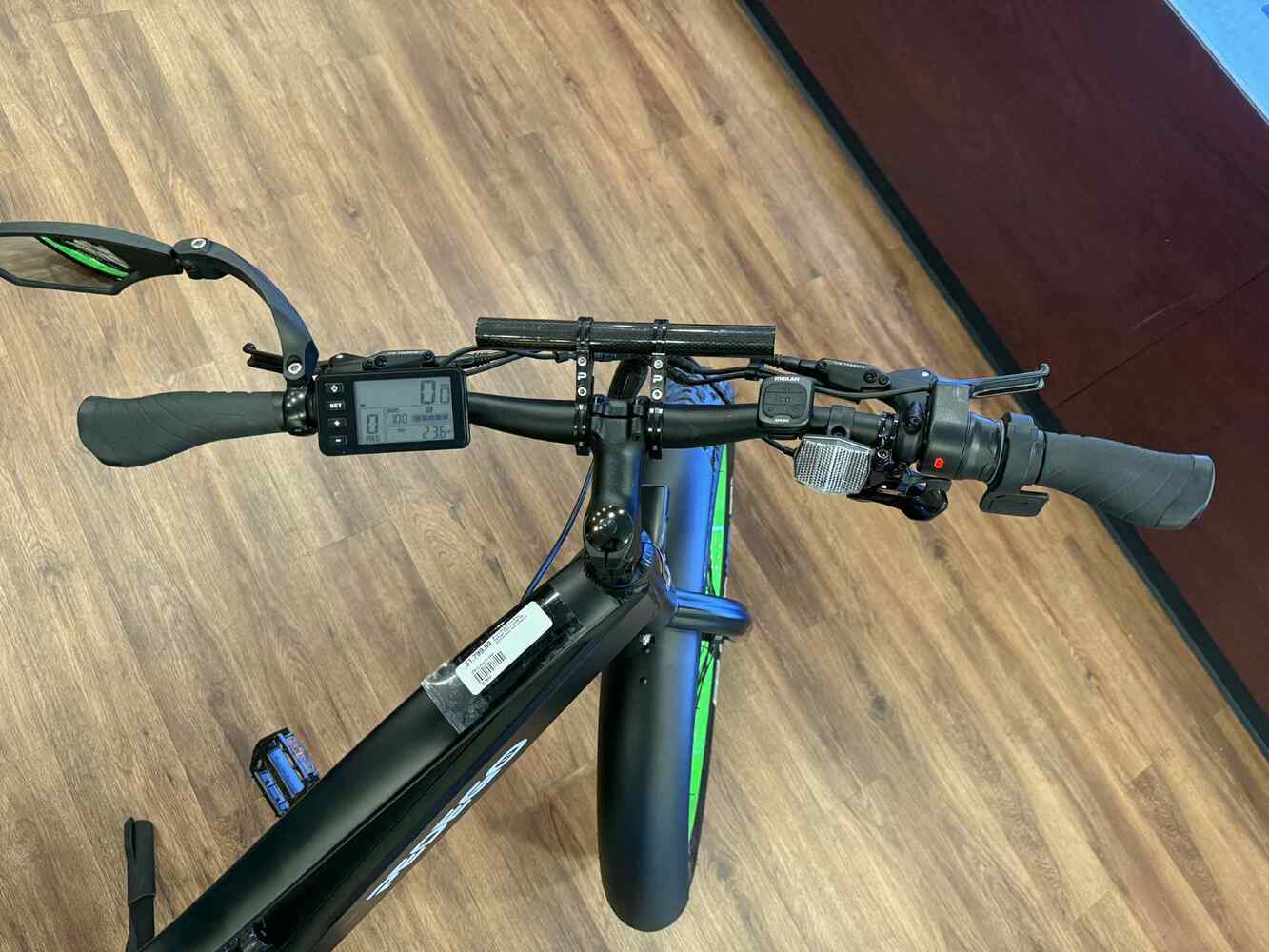

HANDLEBAR

BLACK MTB RISER; ALUMINUM ALLOY; 31.8MM STEM CLAMP DIAMETER; 9° BACKSWEEP, 5° UPSWEEP; 20MM RISE; 720MM WIDTH.

STEM

BLACK 3D FORGED ALUMINUM ALLOY; 80MM LENGTH; 7° RISE; 31.8MM HANDLEBAR CLAMP DIAMETER; 1 ? (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER.

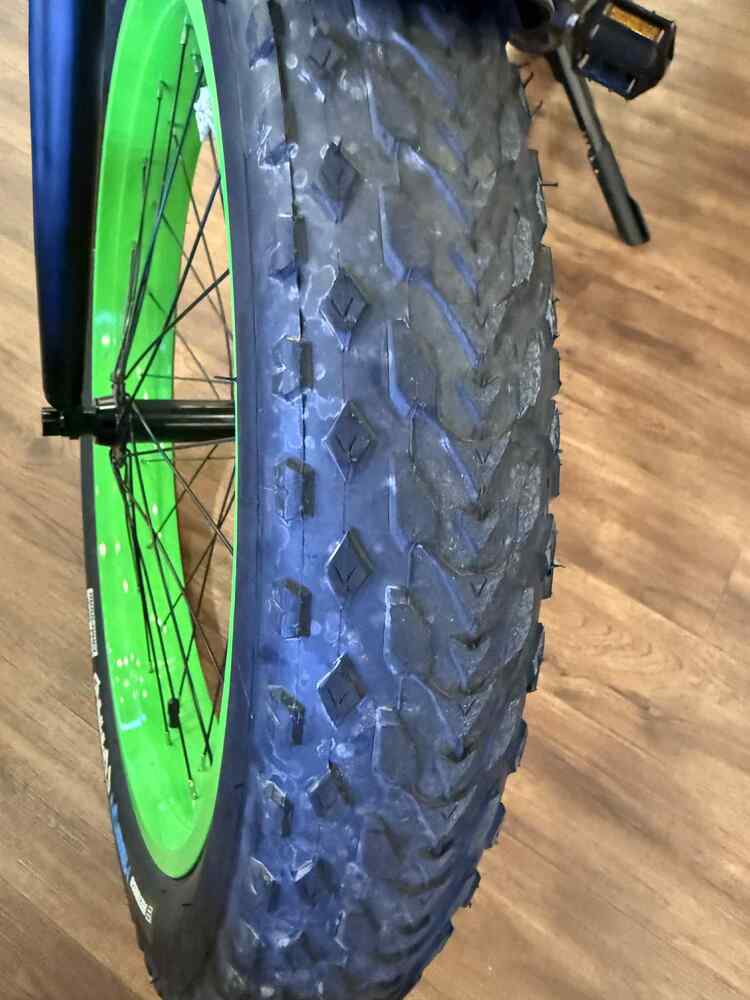

TIRES

VEE RUBBER MISSION COMMAND 26” x 4.0”; MULTI PURPOSE RUBBER COMPOUND, 58 A DUROMETER; WIRE BEAD; 8-20 PSI; 26 x 4.0” VEE RUBBER INNER TUBE, SCHRADER VALVE.
