ks218a
| Model Active |
KS 218A SUB |
| System Type |
Active subwoofer |
| Power Rating |
4000W (PROGRAM) / 8000W (PEAK) |
| Transducer Low |
2 x 18" Woofer, 3" Sandwich Voice Coil with long excursion |
| Max SPL |
133dB Max. |
| Active Crossover |
BandPass type 12dB/oct. under analog processor |
| Frequency Response (-6dB) |
35Hz - 120Hz under analog processor |

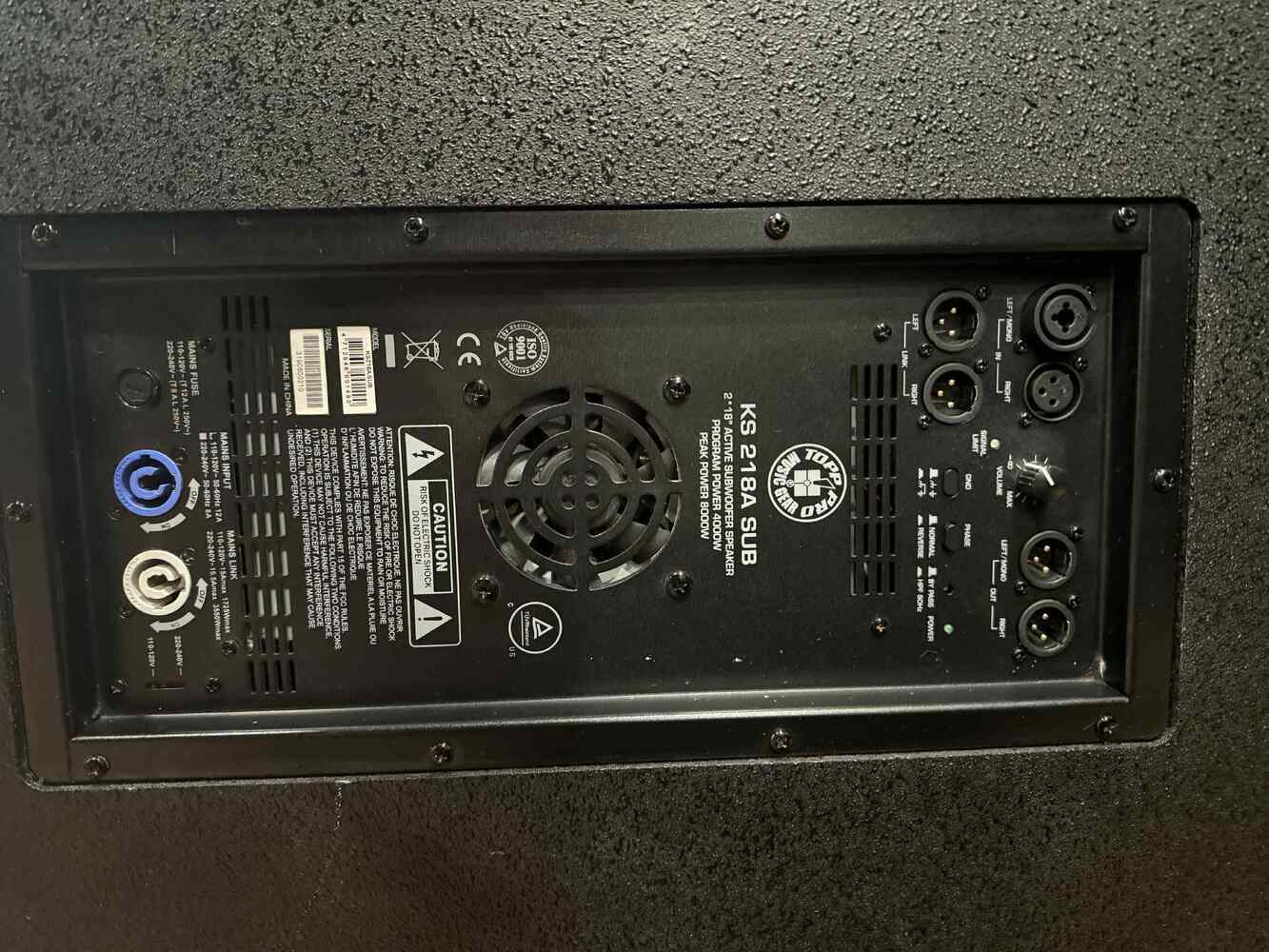

| Input Connector |
In-Left / Mono (COMBO) Right (XLR-F) / Out-Left / Mono Right (XLR-M) / Link-Left / Mono-Right (XLR-M) Balanced (15KOhms) |
| External Controls |
Volume Control / Phase Switch / HPF-80Hz for L-R Satellite or By Pass / Power ON with Green LED / Clip Limiter with Red LED / Ground Lift |
| Electronic Protections |
Thermal / Convection-Fan / Overload / Lim. / Compressor |
| Power Supply |
110-120V~50/60Hz or 220-240V~50/60Hz Switchable |
| Enclosure Construction |
Plywood cabinet, metal grille, rubber foot |
| Mounting |
One metal standard pole-mount |
| Dimensions (HxWxD) |
535 x 518.5 x 1000mm (21.06" x 20.41 x 52.36") |
| Net Weight |
46.64kg / 102.82Ibs |
| Volume |
15.887CFT |
